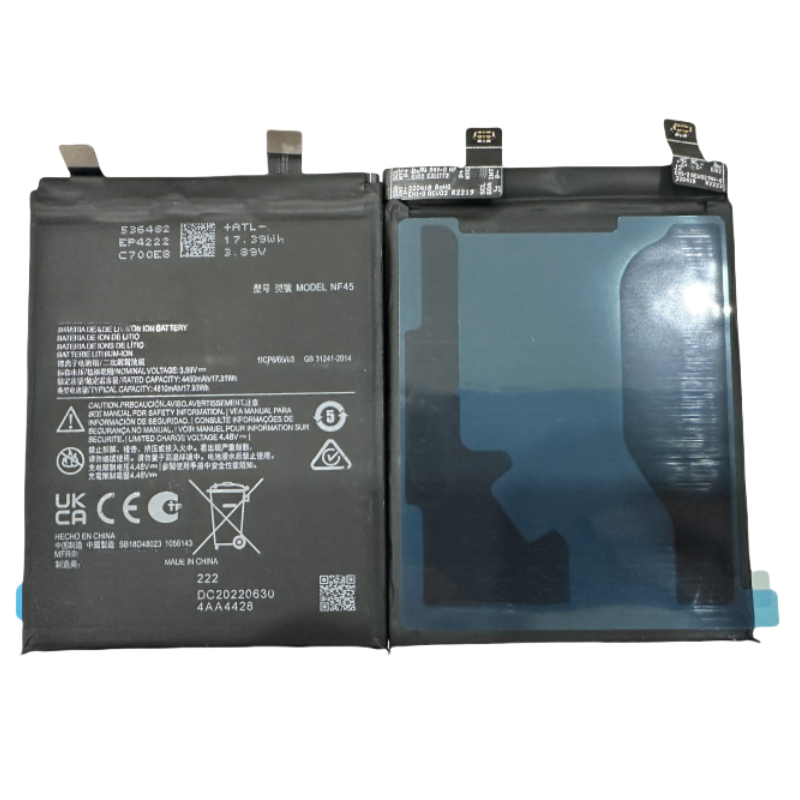

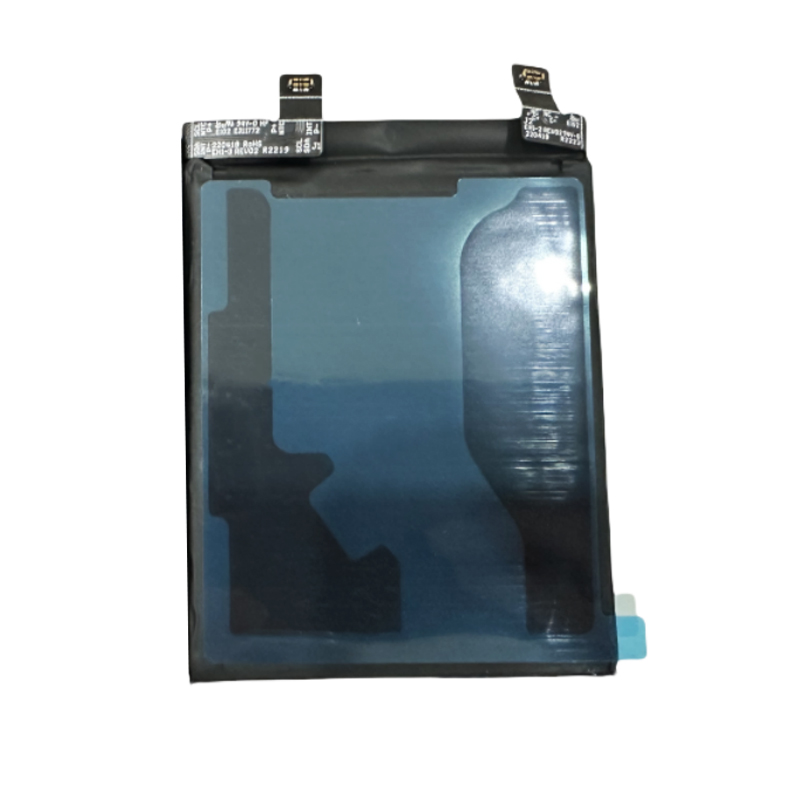

NF45 4610mAh 3.89V Li-ion Polymer Replacement Battery for Moto X30 Pro XT2241-1 125W TurboPower

Description

Battery model: NF45
Capacity: 4610mAh
Rated voltage: 3.89V
Charge limit voltage: 4.45V
Battery type: Li-ion Polymer (Grade A cells)
Compatible with: Motorola Moto X30 Pro (XT2241-1), Motorola Edge 30 Ultra (global version)
Package include: 1 x battery
Restore the flagship performance of your Motorola Moto X30 Pro with this NF45 4610mAh replacement battery. The Moto X30 Pro (model XT2241-1) features a 6.67-inch 144Hz OLED display, Qualcomm Snapdragon 8+ Gen 1 processor, and supports 125W wired fast charging — reaching 100% in approximately 20 minutes. This Li-ion Polymer battery delivers the original 4610mAh capacity for all-day use. Unlike generic alternatives, this NF45 battery for Moto X30 Pro is precisely dimensioned to fit the original compartment and uses the correct small 2‑pin micro connector. Built with high-density cell technology and multi-layer safety protection against overcharge, over-discharge, and short circuits. CE, RoHS, and UN38.3 certified.
Technical Details for Moto X30 Pro Owners: The NF45 4610mAh battery replacement for Moto X30 Pro XT2241-1 maintains the original 4.45V charge termination voltage (3.89V nominal) and uses low-resistance cells to ensure stable power delivery. Unlike lower-quality alternatives, this Moto X30 Pro battery replacement supports the original 125W wired fast charging protocol — reaching 50% in approximately 7 minutes and 100% in about 20 minutes. The device also supports 50W wireless charging and 10W reverse wireless charging, and this replacement battery is fully compatible with all these features. The built-in protection circuit module (PCM) guards against over-charge, over-discharge, short circuit, and over-current. For best longevity, avoid frequently draining the battery below 10% — lithium-ion cells prefer partial discharges between 20% and 80%.
Important Compatibility Note: This NF45 battery for Moto X30 Pro XT2241-1 fits the Motorola Moto X30 Pro (XT2241-1) and its global version marketed as Motorola Edge 30 Ultra. It is NOT compatible with Moto X30, Moto X40, Edge 30 Pro, or other Motorola models. Please check your original battery model before ordering — NF45 is printed on the battery label inside your phone. If your phone shuts down unexpectedly when the battery indicator still shows charge, or if it drains too quickly during gaming or video streaming, this NF45 4610mAh replacement battery for Moto X30 Pro will restore stable power delivery.
Installation Guidance: The Moto X30 Pro has a sealed design with strong adhesive. Professional installation is strongly recommended. If you choose to replace the battery yourself: 1) Power off the device completely. 2) Heat the back cover to soften adhesive (use a heat gun at no more than 70°C). 3) Carefully pry open the back cover with a suction cup and plastic spudger. 4) Remove the cover screws and disconnect the battery connector by pulling the plug (not the wires). 5) Remove the old battery (lightly adhered), connect the new NF45 battery, then reassemble. 6) If the device doesn’t power on after replacement, leave it connected to the original Motorola charger for 10-15 minutes to activate the protection circuit. Improper installation may damage the display or compromise water resistance.
Battery Care for Moto X30 Pro: For maximum lifespan, keep battery level between 20% and 80% for daily use. Use only the original Motorola 125W charger and cable for optimal charging — third-party chargers may not support the proprietary fast charging protocol correctly, and using incompatible fast chargers may cause overheating. If storing the device for more than 2 months, keep the battery at approximately 60% charge. Avoid leaving the Moto X30 Pro in hot environments (e.g., inside a car in summer) — heat accelerates battery degradation. Stop using immediately if the battery shows any swelling. For optimal NF45 battery calibration, perform one full discharge-recharge cycle (drain until auto-shutoff, then charge uninterrupted to 100%) after installing a new battery to help the system calibrate battery level reporting.
