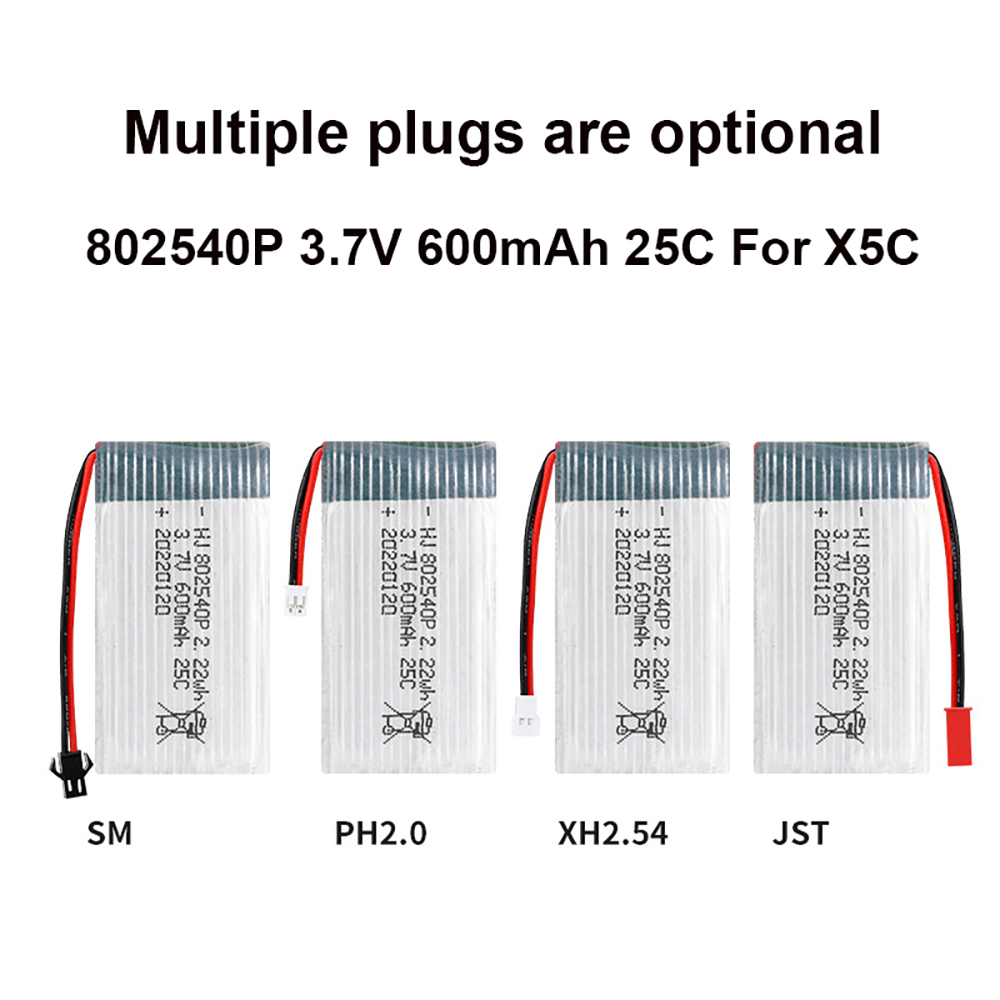

802540 600mAh 3.7V 25C high-discharge Li-Po battery for X5C RC drone, 4 plug types comparison view showing JST, SM, XH2.54, and PH2.0 connectors on white background

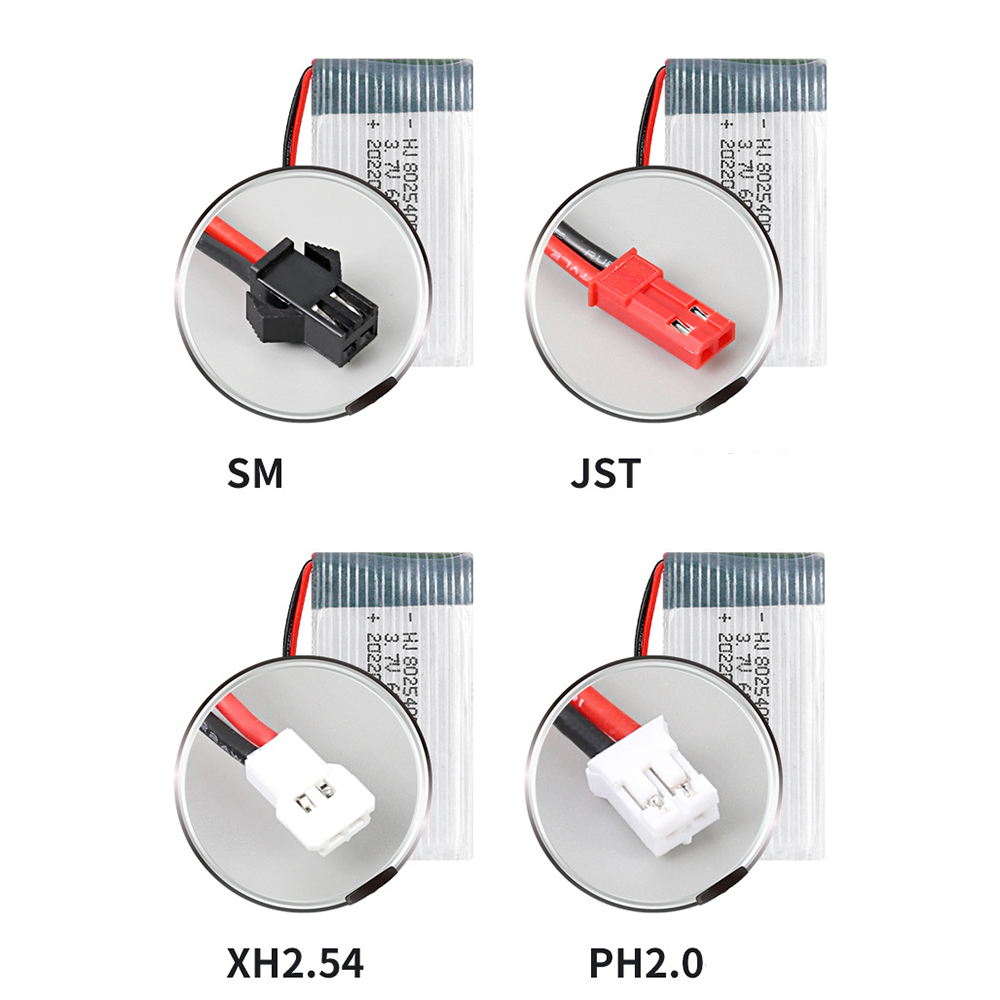

802540 600mAh 25C Li-Po battery 4 plug connectors closeup view showing JST, SM, XH2.54, and PH2.0 plug types side by side for X5C RC drone battery replacement

802540 802540P 600mAh 3.7V 25C Li-Po Battery for X5C RC Drone (4 Plug Types)

Original price was: $12.99.Current price is: $9.99.

🔘 802540 600mAh 3.7V 25C | 🔋 Li-Polymer | 🚁 For X5C RC Drone (4 Plug Types)

No PayPal account? 💳 Pay with credit/debit card | 🛡️ PayPal Buyer Protected
SKU: 802540 Category: Tags: , , ,

Description

Battery model: 802540 / 802540P

Capacity: 600mAh

Rated voltage: 3.7V

Charge limit voltage: 4.2V

Discharge rate: 25C (High discharge for drones)

Battery type: Li-Polymer

Dimensions: 44.4 × 25 × 8.3mm

Weight: 18g

Compatible with: X5C RC drone and similar quadcopters

Available plug types: JST Plug, SM Plug, XH2.54 Plug, PH2.0 Plug

Package include: 1 x battery (plug type as selected)

Power up your X5C RC drone with this 802540 600mAh 25C high-discharge Li-Polymer battery. The 25C discharge rate provides the burst power needed for aggressive flight, flips, and rapid climbs. The compact 44.4×25×8.3mm cell size fits most X5C drone battery compartments. Built with grade A cells and multi-layer safety protection against overcharge, over-discharge, and short circuits. CE and RoHS certified.

⚠️ Important — Choose the correct plug type for your drone: This battery is available in 4 different connector versions. Please check your original battery’s plug type before ordering. The plug types are NOT interchangeable.

Available plug options:

  • JST Plug — Standard red 2-pin connector for many RC drones
  • SM Plug — Small 2-pin connector common on micro drones
  • XH2.54 Plug — 2.54mm pitch connector
  • PH2.0 Plug — 2.0mm pitch connector, common on X5C and similar drones

Battery Care Tips: Avoid over-discharge — recharge when drone loses power or after each flight. Use a compatible Li-Po charger set to 3.7V (4.2V full). Do not exceed 1C charge rate (600mA recommended). Store at 40-60% charge. If swelling occurs, stop use immediately and dispose properly.

✅ Condition: Brand New – Never used, factory-tested quality

✅ 25C High Discharge – For aggressive drone flight

✅ CE / RoHS Certified

✅ 90-Day Warranty from delivery - Longer coverage than major platforms

✅ Ships in 3-7 days with tracking

🛡️ Shipping Protection Available at Checkout

✅ PayPal Buyer Protection included

⚠️ Low Stock Alert: Only 8 left in stock. Order now to avoid waiting.

🔋 Can’t find your battery model? Use our FREE Battery Lookup Service – tell us your device and we’ll find a match within 24 hours. 👉 battery.qingsm.tech/find-my-battery

📦 About Shipping / Tax / Payment / Warranty

Discover more from Battery.qingsm.tech

Subscribe to get the latest posts sent to your email.

Additional information

Connector Type

JST, SM, XH2.54, PH2.0

Reviews

There are no reviews yet.

Be the first to review “802540 802540P 600mAh 3.7V 25C Li-Po Battery for X5C RC Drone (4 Plug Types)”

Your email address will not be published. Required fields are marked *
To receive the "Verified Owner" badge, please use the same email address you used when placing your order.

Frequently Asked Questions

This 802540 battery is compatible with X5C RC drones and similar quadcopters that fit a 44.4×25×8.3mm battery compartment. The 25C discharge rate provides ample power for flips and aggressive flight. Most importantly, you must select the correct plug type for your drone — available options include JST, SM, XH2.54, and PH2.0. Please check your original battery's connector before ordering. PH2.0 is the most common on X5C models.

The plug type determines compatibility with your drone's battery connector:
- JST Plug: Standard red 2-pin connector on many RC drones
- SM Plug: Small 2-pin connector for micro drones
- XH2.54 Plug: 2.54mm pitch connector
- PH2.0 Plug: 2.0mm pitch connector — most common on X5C drones

These plugs are NOT interchangeable. Please check your original battery's connector or your drone's manual before ordering. If unsure, select PH2.0 as this is the standard for X5C models.

Use only a charger designed for 3.7V Li-Po batteries. Set charger to Li-Po mode with 3.7V nominal (4.2V full). Recommended charge current: 600mA (1C) — do NOT exceed 1.2A. Never leave the battery unattended while charging. For maximum lifespan, land your drone when you notice reduced power to avoid over-discharge (below 3.0V per cell). Store at 40-60% charge at room temperature. If the battery swells, becomes hot, or shows any damage, stop use immediately and recycle at a battery collection point.
